Product INFORMATION

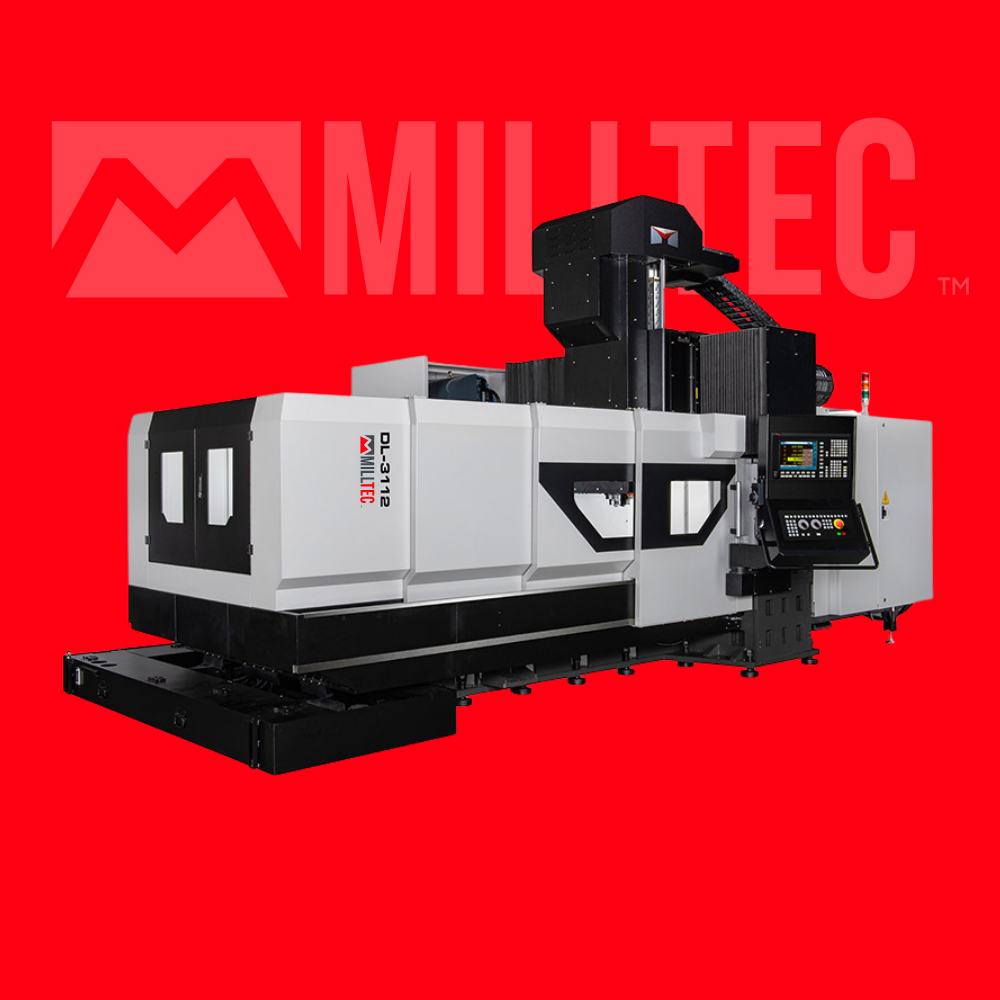

The Milltec DL-3112 Double Column Machining Centre represents the pinnacle of large-scale precision manufacturing, featuring an impressive 3,100mm x 1,220mm x 800mm working envelope with a massive 3,000 x 1,100mm table.
This powerhouse machine combines a direct-drive 10,000 RPM spindle with a 24-tool automatic tool changer to deliver uncompromising productivity for the most demanding applications. Built with roller-type linear guideways across all three axes and seven T-slots (22mm x 150mm spacing), the DL-3112 ensures exceptional accuracy and versatile workholding capabilities. Ideal for aerospace, automotive, and heavy industry applications requiring superior surface finishes and tight tolerances on substantial workpieces.
Enquire Today
We will get back to you as soon as possible.
Please try again later.
Technical Data
| SPECIFICATION | |
|---|---|
| X TRAVEL | 3,100 mm |
| Y TRAVEL | 1,220 mm |
| Z TRAVEL | 800 mm |
| Spindle nose to table surface | 150 ~ 950 mm |
| Distance between columns | 1,400 mm |
| Table size | 3,000 x 1,100 mm |
| T-slot (Q'ty x Size x Dist) | 7 x 22 x 150 mm |
| Max. Table Load | 5,000 kgs |
| Spindle | |
|---|---|
| Transmission | Direct type |
| Spindle Taper | BBT40 |
| Spindle Speed | 10,000 rpm |
| Spindle Power | 11 / 15 kW |
| OTHER ITEMS | |
|---|---|
| ATC Capacity | 24 tools |
| Slideways for 3 axis | X / Y / Z Roller type linear guideway |
*DL-1512/2112/3112/4112 shipping container: 40OT (Evergreen)
Note: Specifications are subject to change without further notice.
