Product INFORMATION

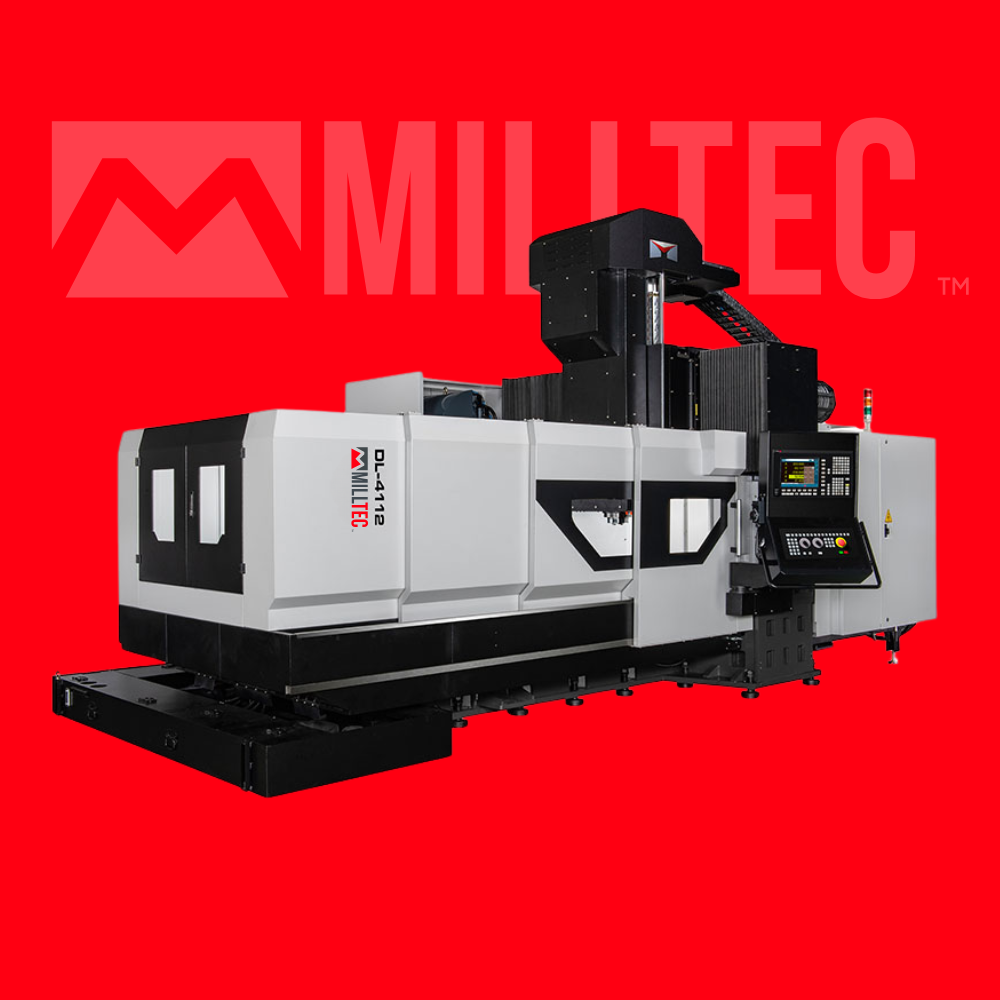

The Milltec DL-4112 Double Column Machining Centre stands as the ultimate solution for large-scale precision manufacturing, boasting an extraordinary 4,100mm x 1,220mm x 800mm working envelope with a colossal 4,000 x 1,100mm table. This flagship machine combines a direct-drive 10,000 RPM spindle with a 24-tool automatic tool changer to deliver unmatched productivity for the most challenging industrial applications.
Engineered with roller-type linear guideways across all three axes and seven T-slots (22mm x 150mm spacing), the DL-4112 provides exceptional rigidity and versatile workholding capabilities. Perfect for aerospace, shipbuilding, and heavy engineering sectors requiring superior precision and reliability on the largest workpieces.
Enquire Today
We will get back to you as soon as possible.
Please try again later.
Technical Data
| SPECIFICATION | |
|---|---|
| X TRAVEL | 4,100 mm |
| Y TRAVEL | 1,220 mm |
| Z TRAVEL | 800 mm |
| Spindle nose to table surface | 150 ~ 950 mm |
| Distance between columns | 1,400 mm |
| Table size | 4,000 x 1,100 mm |
| T-slot (Q'ty x Size x Dist) | 7 x 22 x 150 mm |
| Max. Table Load | 6,000 kgs |
| Spindle | |
|---|---|
| Transmission | Direct type |
| Spindle Taper | BBT40 |
| Spindle Speed | 10,000 rpm |
| Spindle Power | 11 / 15 kW |
| OTHER ITEMS | |
|---|---|
| ATC Capacity | 24 tools |
| Slideways for 3 axis | X / Y / Z Roller type linear guideway |
*DL-1512/2112/3112/4112 shipping container: 40OT (Evergreen)
Note: Specifications are subject to change without further notice.
