Milltec DL-3112

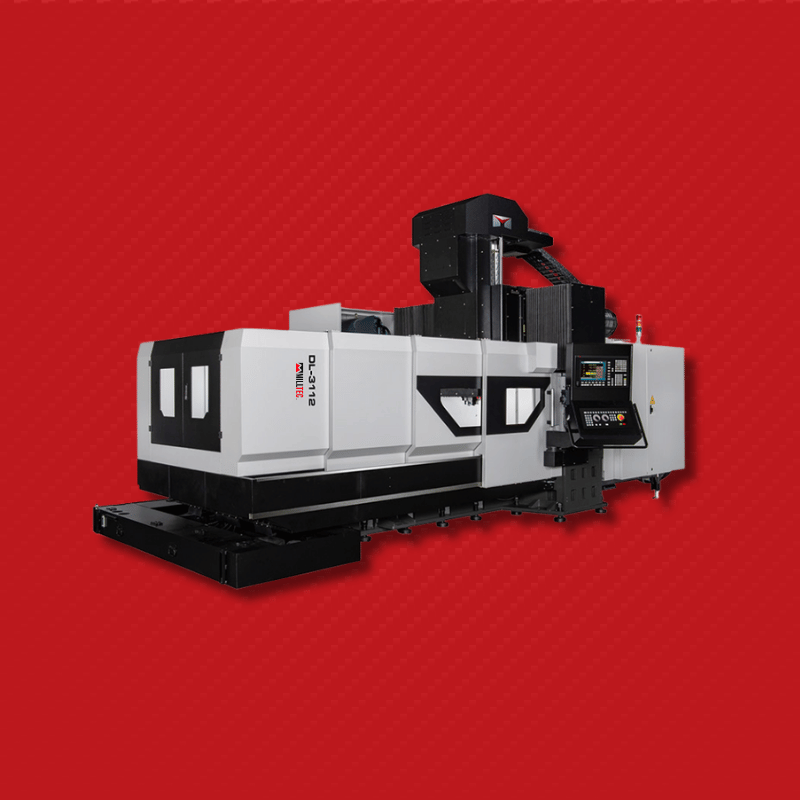

The Milltec DL-3112 Double Column Machining Centre provides advanced machining capabilities with a 1,200mm Y-axis travel for precision manufacturing. Engineered for large-scale industrial applications, this machine delivers exceptional rigidity, accuracy, and performance for manufacturers requiring robust solutions across aerospace, automotive, energy, and heavy engineering sectors.

The DL-3112 features a robust double column construction that delivers exceptional rigidity, thermal stability, and vibration damping for heavy-duty machining operations. The advanced roller type linear guideways on X, Y, and Z axes provide precise motion control and consistent accuracy across extended production runs. With an impressive 3,100mm X-axis, 1,220mm Y-axis, and 800mm Z-axis travel, this machine offers an expansive working envelope for large and complex workpieces.

Equipped with a direct-type spindle transmission capable of 10,000 rpm and a 24-tool automatic tool changer, the DL-3112 delivers remarkable machining flexibility and efficiency. The expansive 3,000 x 1,100mm table with 7 x 22 x 150mm T-slot configuration provides versatile workholding options for large components, while the 150-950mm spindle to table distance range accommodates diverse workpiece heights. This machine is engineered to meet the most demanding manufacturing requirements with superior performance and reliability.

• Double column construction for maximum rigidity and stability
• Extensive 3,100mm X-axis travel with 1,220mm Y-axis and 800mm Z-axis
• Large 3,000 x 1,100mm table with 7 x 22 x 150mm T-slot configuration
• Direct-type spindle transmission with 10,000 rpm maximum speed
• Roller type linear guideways for X, Y, and Z axes
• 24-tool automatic tool changer for efficient production
• Spindle to table distance range of 150-950mm
• 1,400mm table length for versatile workholding
