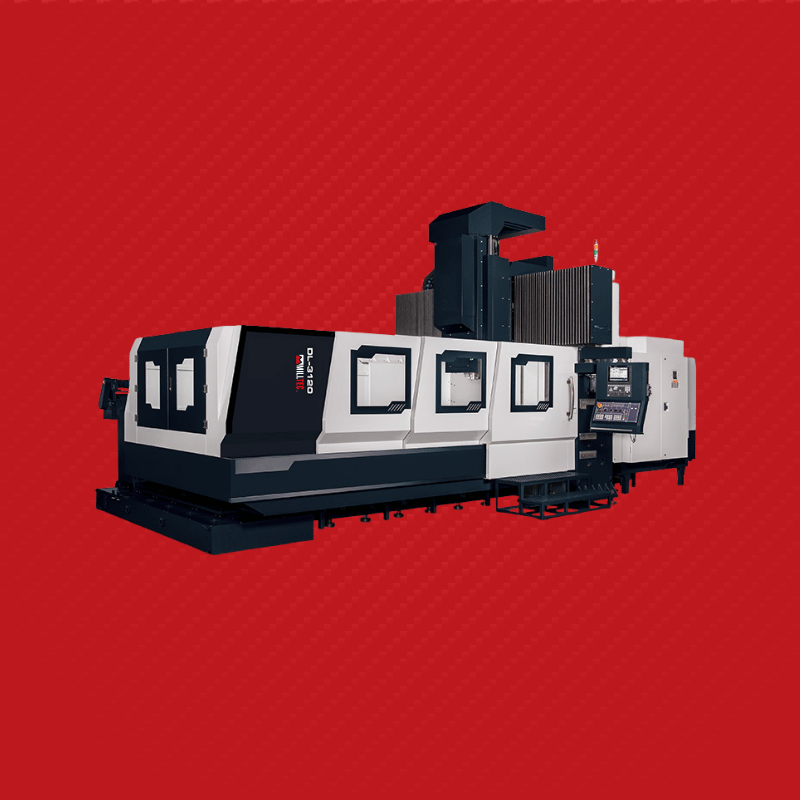

Milltec DL-3120

The Milltec DL-3120 Double Column Machining Centre delivers exceptional machining capabilities with an extended 2,020mm Y-axis travel for precision manufacturing of large components. Engineered for demanding industrial applications, this machine provides superior rigidity, accuracy, and performance for manufacturers requiring robust solutions across aerospace, automotive, energy, and heavy engineering sectors.

The DL-3120 features a robust double column construction that delivers exceptional rigidity, thermal stability, and vibration damping for heavy-duty machining operations. The hybrid slideway system combines roller type linear guideways for X and Y axes with box ways for the Z-axis, providing an optimal balance of precision, load capacity, and damping characteristics. With an impressive 3,100mm X-axis, 2,020mm Y-axis, and 800mm Z-axis travel, this machine offers an expansive working envelope for large and complex workpieces.

Equipped with a two-speed gearbox spindle capable of 6,000 rpm and a 32-tool automatic tool changer, the DL-3120 delivers remarkable machining flexibility and torque characteristics for diverse material removal requirements. The expansive 3,000 x 1,800mm table with 11 x 22 x 150mm T-slot configuration provides versatile workholding options for large components, while the 150-950mm spindle to table distance range accommodates diverse workpiece heights. This machine is engineered to meet the most demanding manufacturing requirements with superior performance and reliability.

• Double column construction for maximum rigidity and stability
• Extensive 3,100mm X-axis travel with 2,020mm Y-axis and 800mm Z-axis
• Large 3,000 x 1,800mm table with 11 x 22 x 150mm T-slot configuration
• Two-speed gearbox spindle with 6,000 rpm maximum speed
• Hybrid slideway system: X/Y roller type, Z-axis box ways
• 32-tool automatic tool changer for extended production cycles
• Spindle to table distance range of 150-950mm
• 2,100mm table length for versatile workholding
