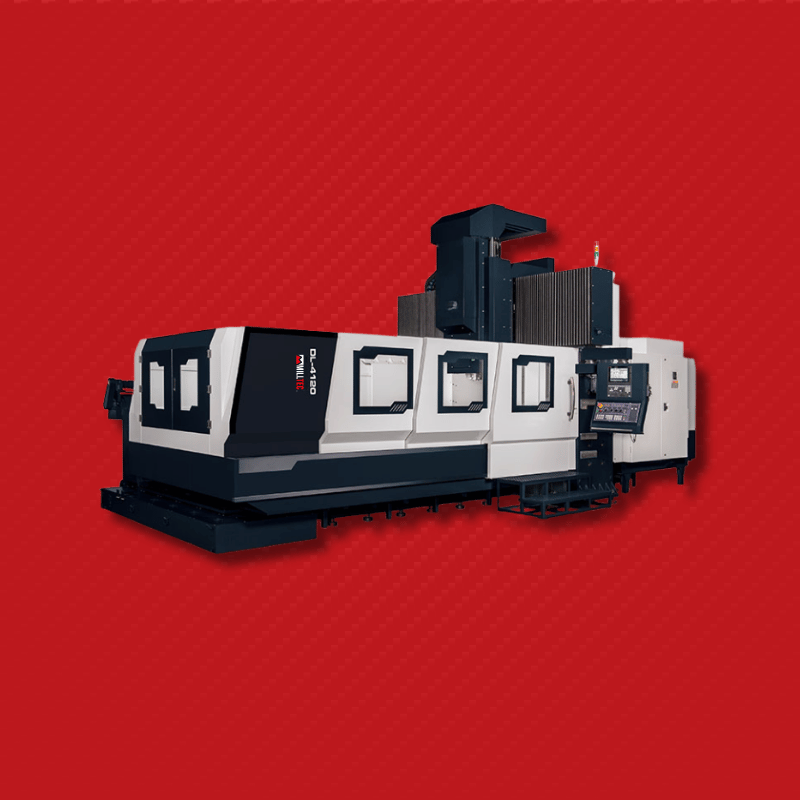

Milltec DL-4120

The Milltec DL-4120 Double Column Machining Centre represents the ultimate solution for large-scale precision manufacturing. Engineered for the most demanding industrial applications, this machine delivers exceptional performance with a 4,100mm X-axis travel and extended 2,020mm Y-axis, providing manufacturers with an expansive working envelope for complex, large-scale components across aerospace, automotive, energy, and advanced engineering sectors.

The DL-4120 features a robust double column construction that provides exceptional rigidity, thermal stability, and vibration damping for heavy-duty machining operations. The hybrid slideway system combines roller type linear guideways for X and Y axes with box ways for the Z-axis, providing an optimal balance of precision, load capacity, and damping characteristics. With an impressive 4,100mm X-axis, 2,020mm Y-axis, and 800mm Z-axis travel, this machine offers an unprecedented working envelope for large and complex workpieces.

Equipped with a two-speed gearbox spindle capable of 6,000 rpm and a 32-tool automatic tool changer, the DL-4120 delivers remarkable machining flexibility and torque characteristics for diverse material removal requirements. The expansive 4,000 x 1,800mm table with 11 x 22 x 150mm T-slot configuration provides versatile workholding options for massive components, while the 150-950mm spindle to table distance range accommodates diverse workpiece heights. This machine is engineered to meet the most demanding manufacturing requirements with superior performance and reliability.

• Double column construction for maximum rigidity and stability
• Extensive 4,100mm X-axis travel with 2,020mm Y-axis and 800mm Z-axis
• Large 4,000 x 1,800mm table with 11 x 22 x 150mm T-slot configuration
• Two-speed gearbox spindle with 6,000 rpm maximum speed
• Hybrid slideway system: X/Y roller type, Z-axis box ways
• 32-tool automatic tool changer for extended production cycles
• Spindle to table distance range of 150-950mm
• 2,100mm table length for versatile workholding
