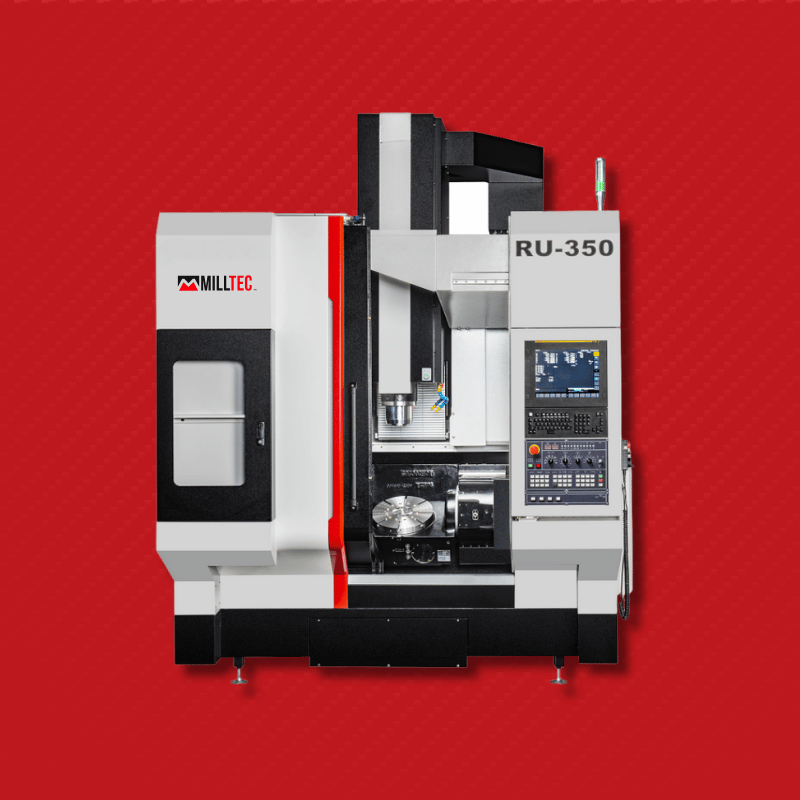

Milltec RU-350

The Milltec RU-350 Ram Type 5-Axis Machining Center provides precision machining capabilities for complex geometric operations requiring advanced multi-axis positioning. Featuring a ram-type construction with tilting A-axis and rotary C-axis configuration, this machine excels at producing intricate components for aerospace, medical, and precision engineering applications with superior accuracy and surface finish.

The RU-350 features a robust ram-type construction that provides exceptional rigidity and thermal stability during demanding multi-axis operations. The tilting A-axis delivers precise angular positioning across a -120° to +10° range, enabling access to complex geometries and undercuts that would be challenging with conventional machining. The 360° continuous C-axis rotation ensures complete workpiece access in a single setup, reducing cycle times and improving accuracy by eliminating multiple setups.

Equipped with a high-performance direct-drive spindle and advanced CNC control, the RU-350 delivers remarkable precision and programming flexibility for diverse manufacturing requirements. The machine's compact yet capable working envelope, featuring 630mm X-axis travel (+300 to -330), 630mm Y-axis travel (+270 to -350), and 510mm Z-axis travel, provides excellent accessibility for complex components. The 32-tool chain-type automatic tool changer ensures efficient production cycles, while the Ø350mm rotary table with 8 x 12 x 45° T-slot configuration offers versatile workholding options for a wide range of part geometries.

• Ram-type construction for enhanced rigidity and precision
• A-axis tilting range from -120° to +10° for complex angle machining
• 360° continuous C-axis rotation for complete workpiece access
• High-speed direct-drive spindle system
• Compact working envelope: 630mm X-axis, 630mm Y-axis, 510mm Z-axis
• Advanced CNC control for sophisticated multi-axis programming
• 32-tool chain-type automatic tool changer
• Precision Ø350mm rotary table for versatile workholding
