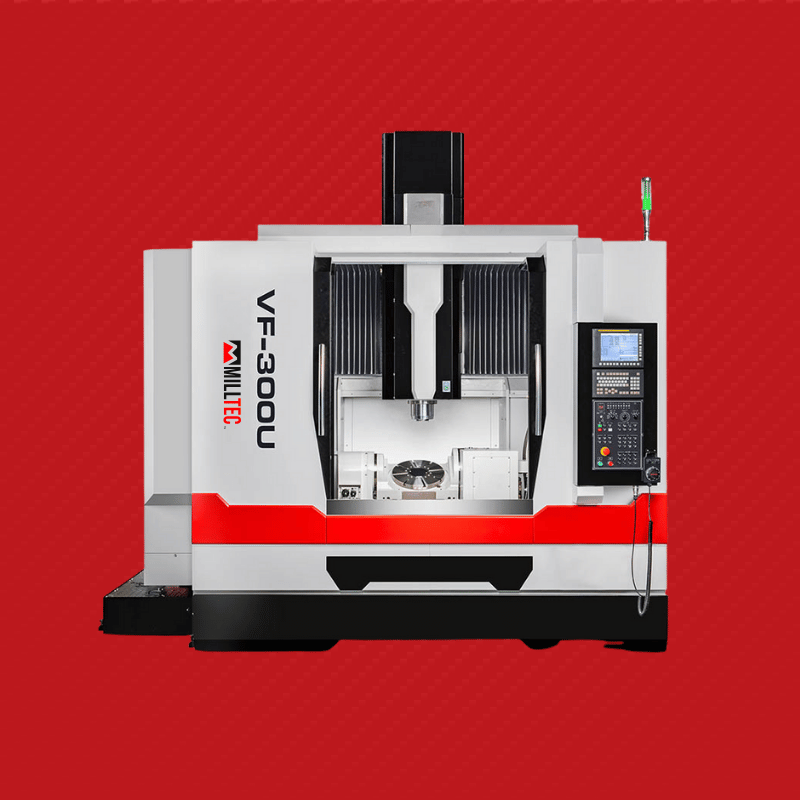

Milltec VF-300U

The Milltec VF-300U compact 5-axis machining centre delivers exceptional precision and versatility for manufacturers specialising in small, complex components. Featuring a vertical configuration with tilting A-axis and rotary C-axis, this machine excels at producing intricate medical devices, aerospace components, and precision engineering parts with superior accuracy and surface finish.

The VF-300U features a sophisticated 5-axis configuration with a tilting A-axis ranging from -120° to +30° and a 360° continuous C-axis rotary table. This advanced dual-axis arrangement provides exceptional flexibility for complex geometric machining, enabling complete workpiece access in a single setup. The robust construction and precision linear guideways ensure consistent accuracy across demanding multi-axis operations, while the advanced thermal management system maintains dimensional stability during extended production runs.

Equipped with a high-performance 12,000 rpm direct-drive spindle and advanced CNC control, the VF-300U delivers remarkable precision and programming flexibility for diverse manufacturing requirements. The machine's compact yet capable working envelope, featuring 1,020mm X-axis, 610mm Y-axis, and 510mm Z-axis travels, provides excellent accessibility for small and medium-sized complex components. The 24-tool automatic tool changer ensures efficient production cycles, while the Ø350mm rotary table offers versatile workholding options for a wide range of part geometries.

• Compact vertical 5-axis configuration with tilting A-axis and rotary C-axis
• A-axis tilting range from -120° to +30° for complex angle machining
• 360° continuous C-axis rotation for complete workpiece coverage
• High-speed 12,000 rpm spindle with direct transmission
• Compact working envelope: 1,020mm X-axis, 610mm Y-axis, 510mm Z-axis
• Siemens CNC control for sophisticated multi-axis programming
• 24-tool automatic tool changer for efficient production
• Precision Ø350mm rotary table for versatile workholding
