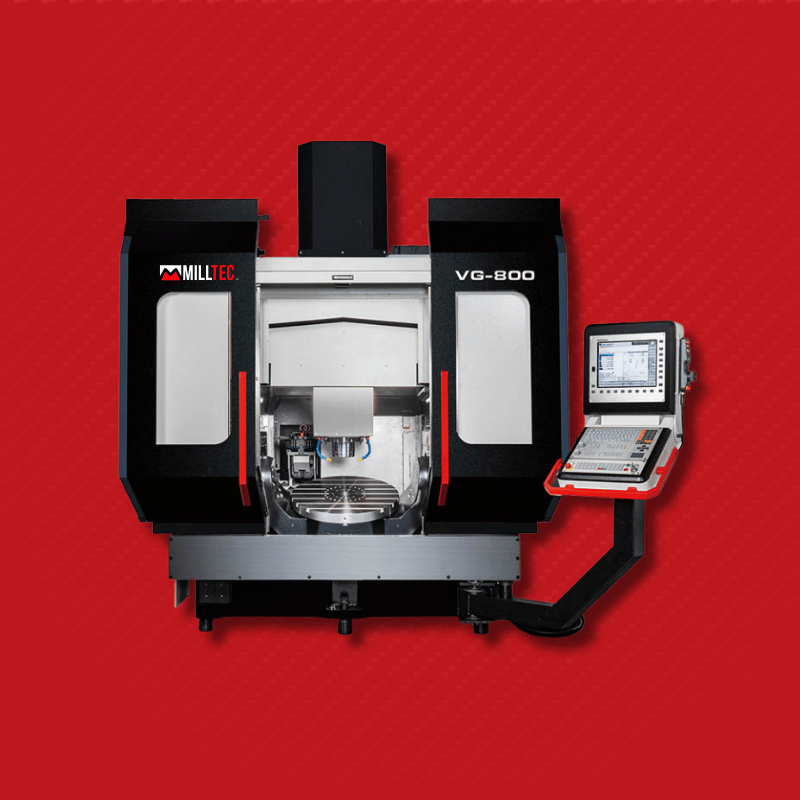

Milltec VG-800

The Milltec VG-800 Gantry Type 5-Axis Machining Centre delivers exceptional versatility and precision for complex component manufacturing. Featuring a unique gantry design with tilting A-axis and rotary C-axis configuration, this machine excels at producing intricate aerospace components, precision tooling, and complex engineering parts requiring multi-axis capability with superior accuracy and surface finish.

The VG-800 features a robust gantry-type construction that provides exceptional rigidity and thermal stability during demanding multi-axis operations. The tilting A-axis delivers precise angular positioning across a -120° to +30° range, enabling access to complex geometries and undercuts that would be impossible with conventional machining. The 360° continuous C-axis rotation ensures complete workpiece access in a single setup, reducing cycle times and improving accuracy by eliminating multiple setups.

Equipped with a high-performance 12,000 rpm spindle featuring HSK-A63 taper and advanced Siemens 840D CNC control, the VG-800 delivers remarkable precision and programming flexibility for diverse manufacturing requirements. The machine's substantial working envelope, featuring 800mm X-axis, 1,245mm Y-axis, and 620mm Z-axis travels, provides excellent accessibility for complex components. The 32-tool automatic tool changer ensures efficient production cycles, while the robust table capacity of 1,000kg horizontal and 500kg tilting accommodates substantial workpieces with confidence.

• Gantry-type construction for enhanced rigidity and stability
• Tilting A-axis with -120° to +30° range for complex angle machining
• 360° continuous C-axis rotation for complete workpiece access
• High-speed 12,000 rpm spindle with HSK-A63 taper
• Generous working envelope with 800mm X-axis and 1,245mm Y-axis travels
• Siemens 840D CNC control for advanced 5-axis programming
• 32-tool automatic tool changer for extended unmanned operation
• Robust table capacity: 1,000kg horizontal, 500kg tilting
