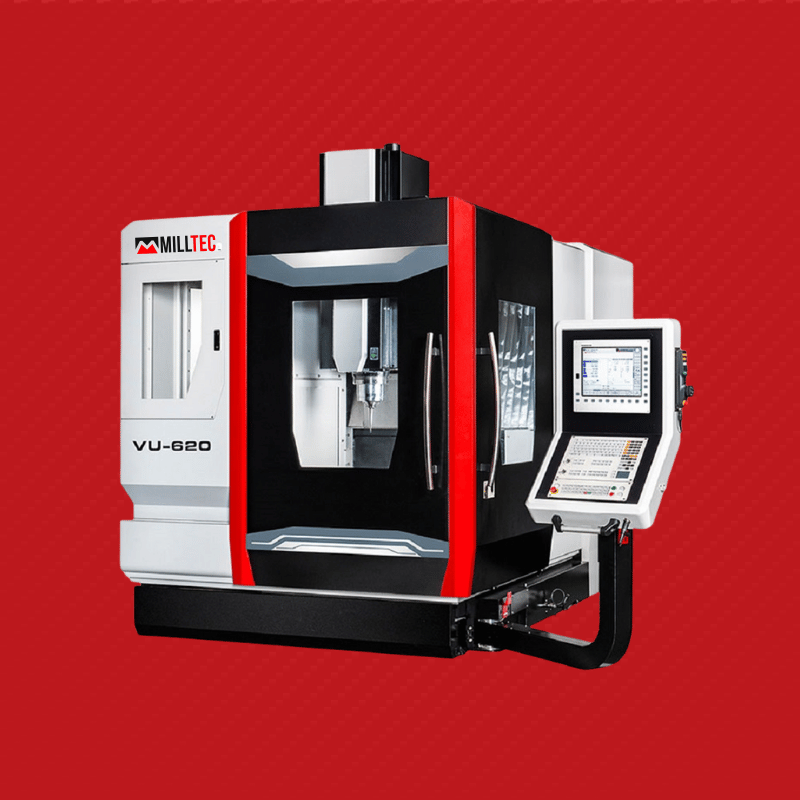

Milltec VU-620

The Milltec VU-620 universal 5-axis machining centre delivers exceptional versatility and precision for manufacturers requiring compact, high-performance multi-axis capability. Featuring a unique B/C axis configuration with tilting spindle head and rotary table, this machine excels at producing complex aerospace components, medical devices, and precision tooling with superior accuracy.

The VU-620 features a sophisticated universal 5-axis configuration combining a tilting spindle head with -50° to +110° B-axis range and a 360° continuous C-axis rotary table. This advanced dual-axis arrangement provides exceptional flexibility for complex geometric machining, enabling complete workpiece access in a single setup. The robust construction and precision linear guideways ensure consistent accuracy across demanding multi-axis operations, while the advanced thermal management system maintains dimensional stability during extended production runs.

Equipped with a high-performance direct-drive spindle and advanced Siemens 840D CNC control, the VU-620 delivers remarkable precision and programming flexibility for diverse manufacturing requirements. The machine's compact yet capable working envelope, featuring 620mm X-axis, 520mm Y-axis, and 460mm Z-axis travels, provides excellent accessibility for complex components. The 32-tool automatic tool changer ensures efficient production cycles, while the machine's universal design accommodates a wide range of workpiece geometries and manufacturing strategies.

• Universal 5-axis configuration with tilting spindle head and rotary table
• B-axis tilting range from -50° to +110° for complex angle access
• 360° continuous C-axis rotation for complete workpiece coverage
• High-performance direct-drive spindle system
• Compact working envelope: 620mm X-axis, 520mm Y-axis, 460mm Z-axis
• Advanced Siemens 840D CNC control for sophisticated programming
• 32-tool automatic tool changer for efficient production cycles
• Precision linear guideways for consistent accuracy
