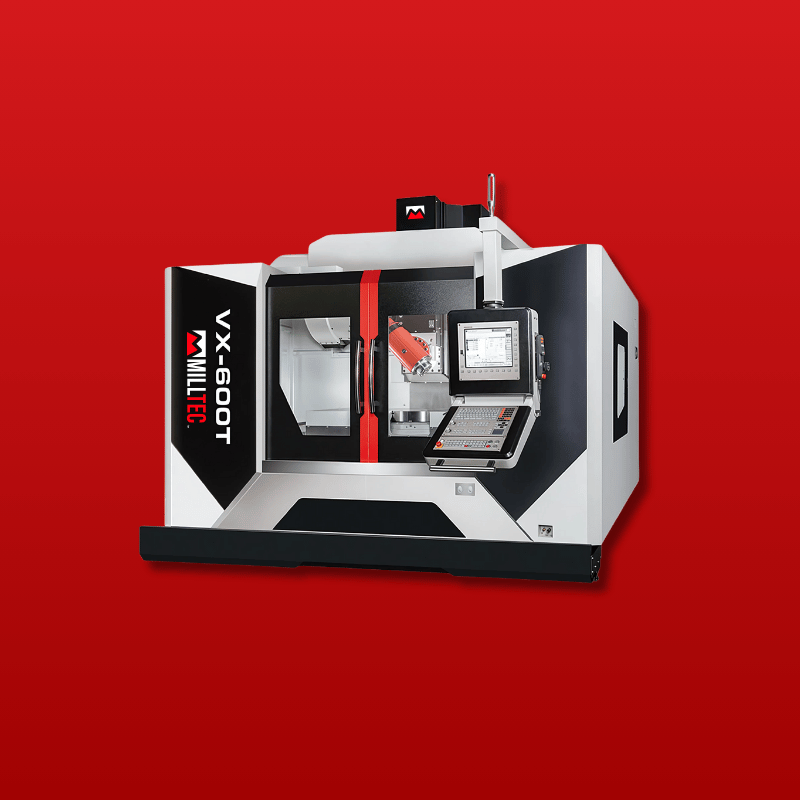

Milltec VX-600T

The Milltec VX-600T combines precision tilting spindle head technology with a high-speed direct-drive rotary table to deliver exceptional 5-axis machining performance for complex components. Engineered for manufacturers requiring simultaneous multi-axis capability, this machine excels at producing intricate aerospace parts, medical implants, and precision tooling with superior surface finishes.

The VX-600T features a tilting spindle head design that provides exceptional rigidity and thermal stability during demanding multi-axis operations. The worm gear transmission in the B-axis delivers precise angular positioning with minimal backlash, ensuring consistent accuracy across the full ±110° tilting range. The direct-drive C-axis rotary table eliminates mechanical transmission losses, delivering rapid acceleration and smooth contouring for continuous 5-axis machining. With a 630mm diameter capacity and 360° continuous rotation, the table handles substantial workpieces while maintaining positioning accuracy.

The built-in 12,000 rpm spindle with BBT40 taper delivers the power and speed required for both heavy roughing and fine finishing operations. Multiple power ratings accommodate varying duty cycles, ensuring optimal performance across diverse machining applications. With 1,300mm of X-axis travel and 700mm in both Y and Z axes, the VX-600T provides substantial working volume for large components and multiple-part setups. The 700 x 1,450mm table with five T-slots offers flexible workholding options, while the 20-720mm spindle-to-table distance range accommodates both tall and compact workpieces.

• Tilting spindle head design with worm gear transmission for precise angular positioning across ±110° B-axis range
• Direct-drive C-axis rotary table with 630mm diameter capacity and 360° continuous rotation
• Built-in 12,000 rpm spindle with BBT40 taper for versatile machining applications
• Generous working envelope with 1,300mm X-axis, 700mm Y-axis, and 700mm Z-axis travels
• Large 700 x 1,450mm table with five T-slots for flexible workholding configurations
• Automatic tool changer supporting 24 to 40 tools for extended unmanned operation
• Advanced Siemens ONE CNC control for sophisticated 5-axis programming and operation
• Spindle-to-table distance range of 20-720mm accommodates diverse workpiece heights
