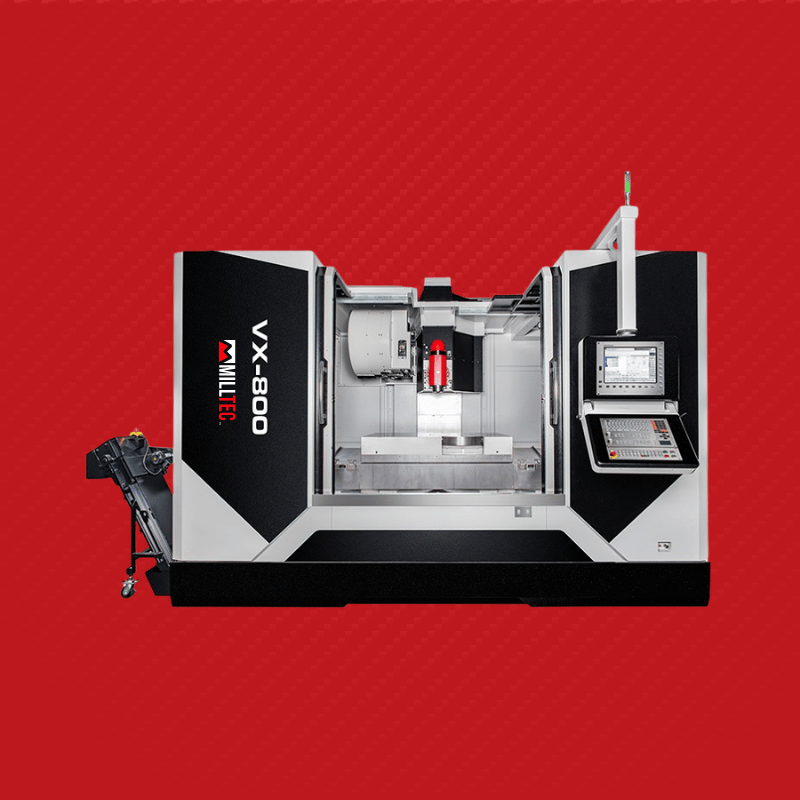

Milltec VX-800

The Milltec VX-800 represents a significant advancement in large-format 5-axis machining technology, combining exceptional working envelope capacity with precision multi-axis capabilities. Engineered for manufacturers requiring substantial machining volume and simultaneous 5-axis performance, this machine excels at producing large aerospace structures, complex automotive tooling, and precision industrial components.

The VX-800 features an advanced tilting spindle head design with worm gear transmission, delivering precise angular positioning across the full ±110° B-axis range. This robust mechanism provides exceptional rigidity and thermal stability during demanding multi-axis operations, ensuring consistent accuracy even when machining large, complex components. The direct-drive C-axis rotary table with 800mm diameter capacity enables smooth 360° continuous rotation, supporting sophisticated contouring strategies for large-scale precision manufacturing.

Equipped with a high-performance 15,000 rpm spindle and BBT40 taper, the VX-800 delivers remarkable power and speed for both heavy material removal and fine finishing operations. The machine's substantial working envelope, featuring 1,600mm X-axis, 900mm Y-axis, and 850mm Z-axis travels, provides manufacturers with exceptional flexibility for large component machining. The 850 x 1,800mm table with five T-slots offers robust workholding capabilities, while the comprehensive automatic tool changer supporting up to 40 tools ensures efficient, uninterrupted production cycles.

• Large-format 5-axis machining with 1,600mm X-axis travel
• Powerful 15,000 rpm spindle with BBT40 taper
• Advanced tilting spindle head with worm gear transmission
• Direct-drive C-axis rotary table with 800mm diameter
• Comprehensive automatic tool changer (24-40 tools)
• Siemens ONE CNC control system
• Substantial 850 x 1,800mm table with five T-slots
• Precise angular positioning across ±110° B-axis range
