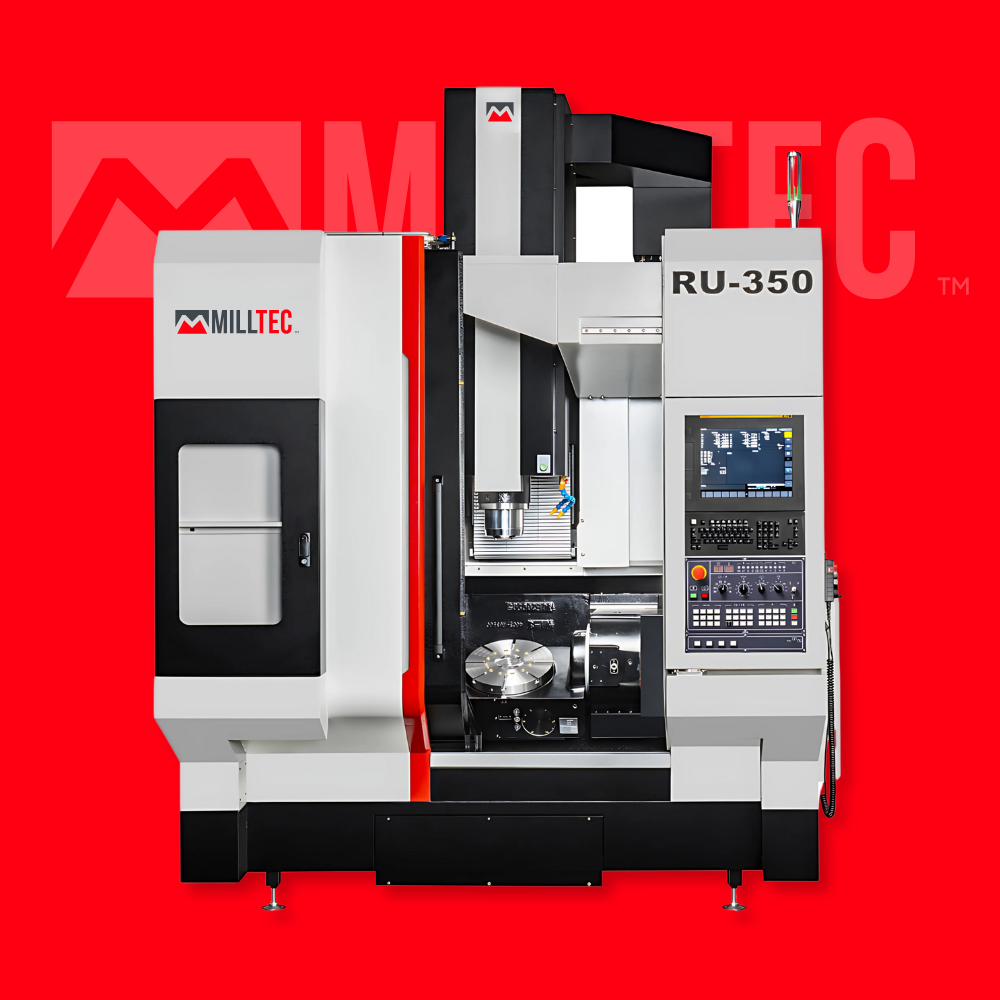

Explore the Milltec RU-350

Explore the VF-300U


A milltec machine is on a red background

Product INFORMATION

The Milltec RU-350 Ram-Type Machining Centre combines innovative ram spindle technology with exceptional precision engineering. Featuring an advanced ram head design that delivers superior reach and accessibility, alongside a robust 12,000rpm spindle, this versatile machine excels in deep cavity machining and complex component manufacturing. Its rigid construction ensures outstanding stability and accuracy, whilst the generous axis travels accommodate diverse workpiece requirements, making it the perfect solution for precision engineering workshops specialising in mould making and intricate component production.

Request A Callback


Technical Data


SPECIFICATION
X TRAVEL 630 mm (+300~-330)
Y TRAVEL 630 mm (+270~-350)
Z TRAVEL 510 mm
Spindle nose to table surface 100 ~ 610 mm
Table Size Ø 350 mm
T-slot (Q'ty x Size x Dist) 8 x 12 x 45 mm
Max. Table Load Horizontal 200 kgs / Tilting 150 kgs
ATC Capacity 32 Tools
CNC CONTROL Fanuc 0iMF 15"
Spindle
Transmission Direct type
Spindle Taper BBT40
Spindle Speed 12,000 rpm
Spindle Power 7.5 / 11 kW
ROTARY TABLE ( A/C Axis )
A AXIS TILTING RANGE -120˚ ~ + 10˚
C AXIS ROTATING RANGE 360˚

**Note: Specifications are subject to change without further notice.
