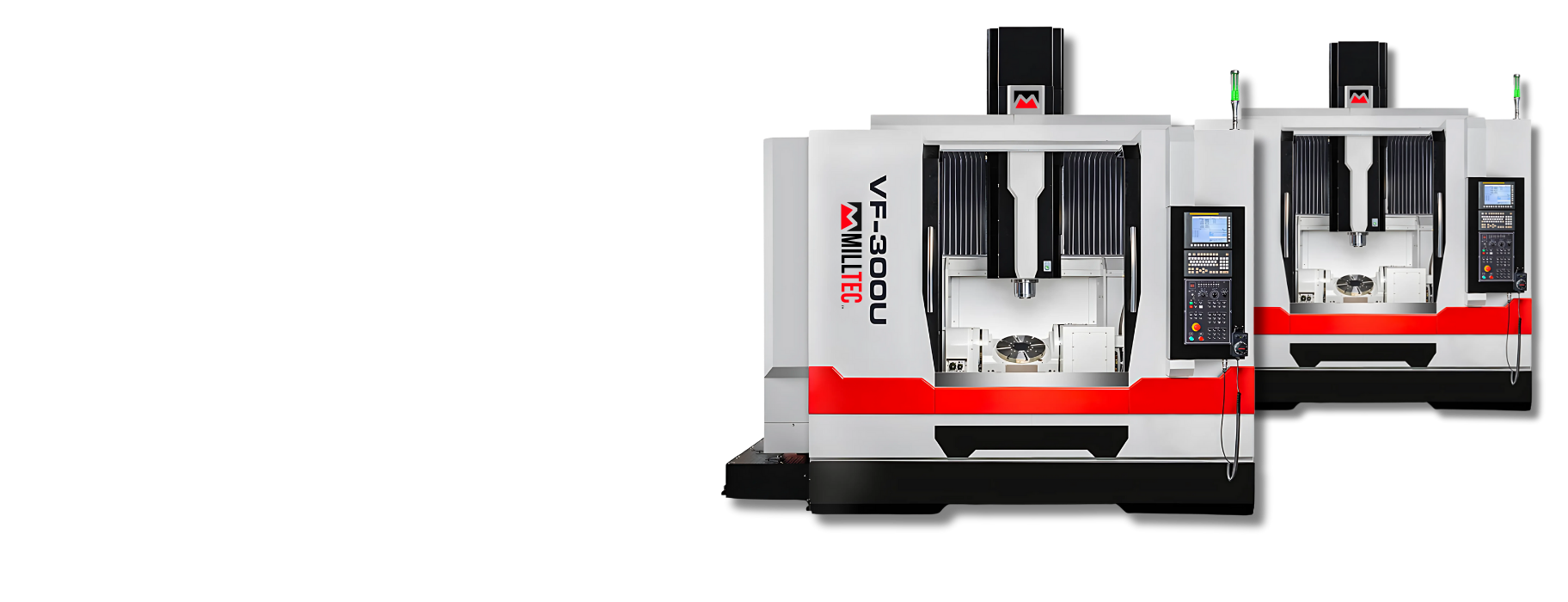

An advertisement for a 5 axis machining centre
Three machines are sitting next to each other on a white background.

Explore the Milltec VF-300U

Explore the VF-300U

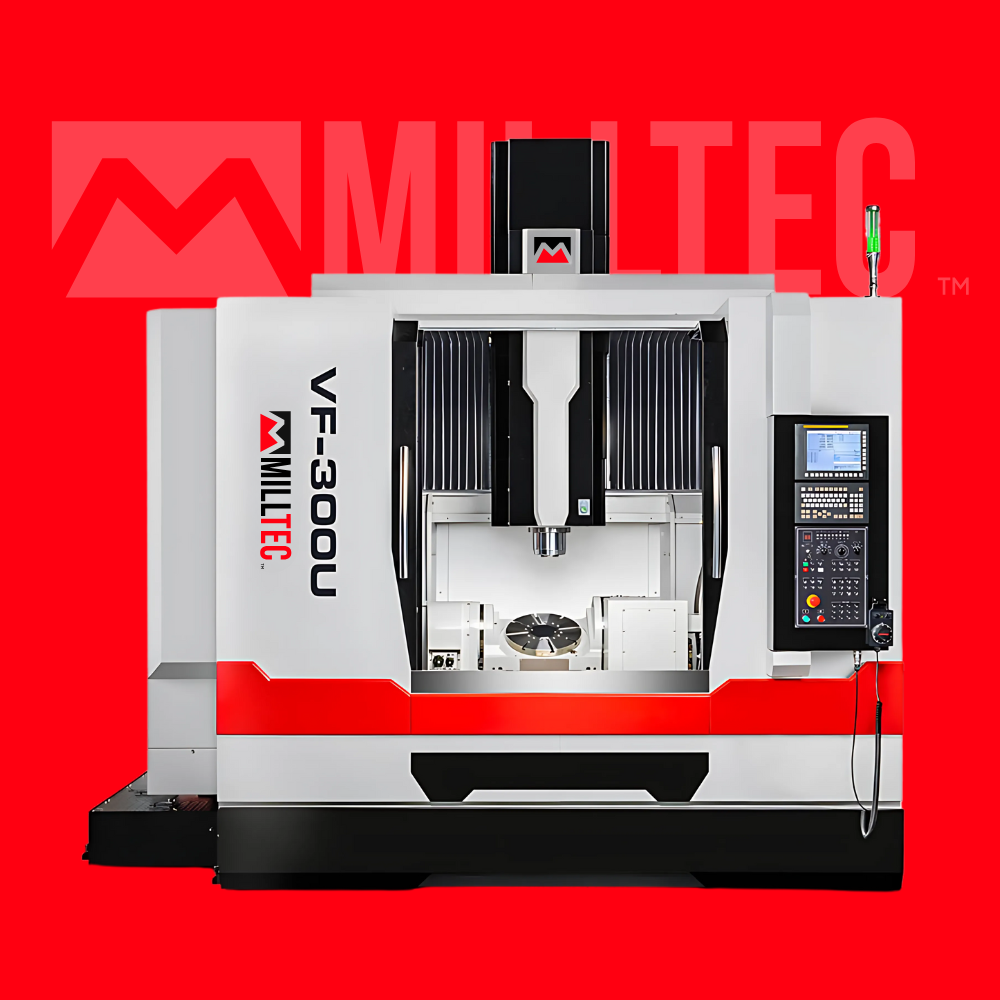

A milltec machine is on a red background

Product INFORMATION

The Milltec VF-300U Vertical Machining Centre delivers exceptional precision in a compact yet powerful package. Featuring a robust 12,000rpm spindle and generous 300 x 420 x 380mm axis travel, this versatile machine combines reliability with outstanding performance for small to medium-sized component manufacturing. Its advanced vertical configuration and precision-engineered structure ensure superior surface finishes and tight tolerances, whilst the user-friendly control system streamlines operations for maximum efficiency. Perfect for precision engineering workshops and manufacturing facilities requiring high-accuracy milling, drilling, and tapping operations in a space-efficient footprint.

Request A Callback


Technical Data


SPECIFICATION
X TRAVEL 1,020 mm
Y TRAVEL 610 mm
Z TRAVEL 510 mm
Spindle nose to table surface 100 ~ 610 mm
Table Size Ø 350 mm
T-slot (Q'ty x Size x Dist) 8 x 12 x 45 mm
Max. Table Load Hotizontal 200 kgs / Tilting 200 kgs
ATC Capacity 32 Tools
CNC CONTROL Fanuc 0iMF
Spindle
Transmission Direct type
Spindle Taper BBT40
Spindle Speed 12,000 rpm
Spindle Power 7.5 / 11 kW
ROTARY TABLE ( A/C Axis )
A AXIS TILTING RANGE -120˚ ~ +30˚
C AXIS ROTATING RANGE 360˚

**Note: Specifications are subject to change without further notice.
