Explore the Milltec VL-550
Explore the VL-550
Product INFORMATION
The

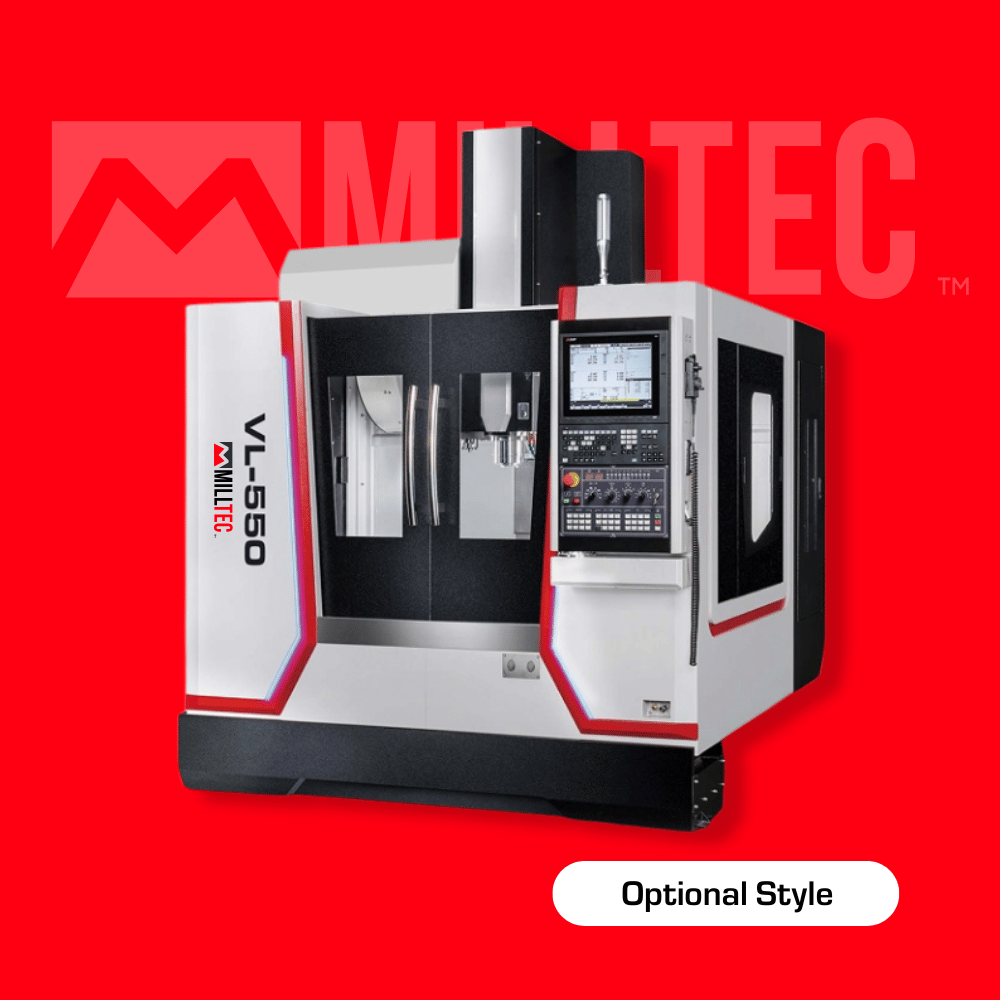

Milltec VL-550 is a robust vertical machining centre built for precision milling and heavy-duty performance. Featuring a rigid box-way design and powerful 7.5 kW spindle, it ensures exceptional stability and fine surface finish. With Mitsubishi/Fanuc control and coolant system, it delivers reliable, high-accuracy machining across diverse industrial applications.
Request A Callback
Thank you for contacting us.
We will get back to you as soon as possible.
We will get back to you as soon as possible.
Oops, there was an error sending your message.
Please try again later.
Please try again later.
Technical Data
| SPECIFICATION | |
|---|---|
| X TRAVEL | 550 mm |
| Y TRAVEL | 410 mm |
| Z TRAVEL | 460 mm |
| Spindle nose to table surface | 130 ~ 590 mm |
| Table Size | 600 x 320 mm |
| T-slot (Q'ty x Size x Dist) | 3 x 14 x 100 mm |
| Max. Table Load | 350 kgs |
| CNC CONTROL | Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor |
| Spindle | |
|---|---|
| Spindle Transmission | Belt type |
| Spindle Taper | BT40 |
| Spindle Speed | 10,000 rpm |
| OTHER ITEMS | |
|---|---|
| ATC Capacity | ATC Genoa type 16 tools / Arm type 24 tools for maximum |
*Spindle motor power depends on motor selection
*Note: Specifications are subject to change without further notice.
