Explore the Milltec VX-600T
Explore the VX-600T
Product INFORMATION

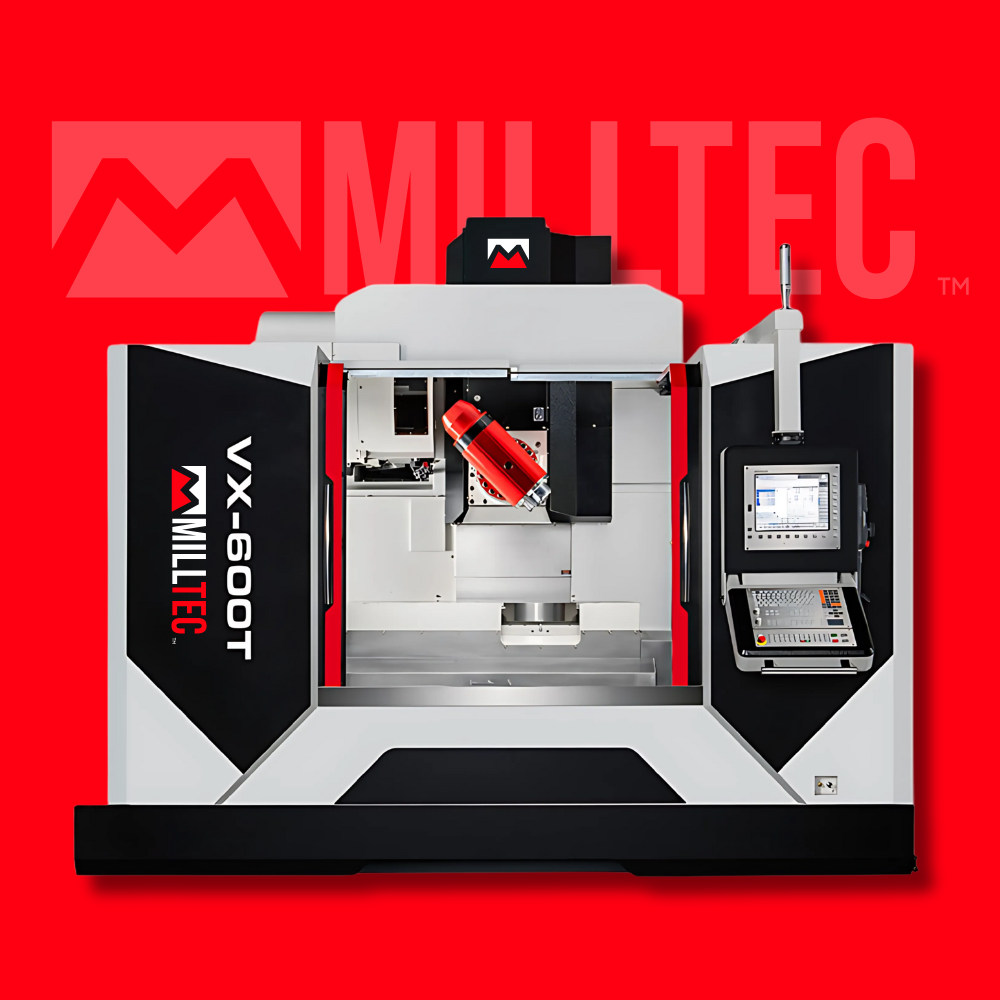

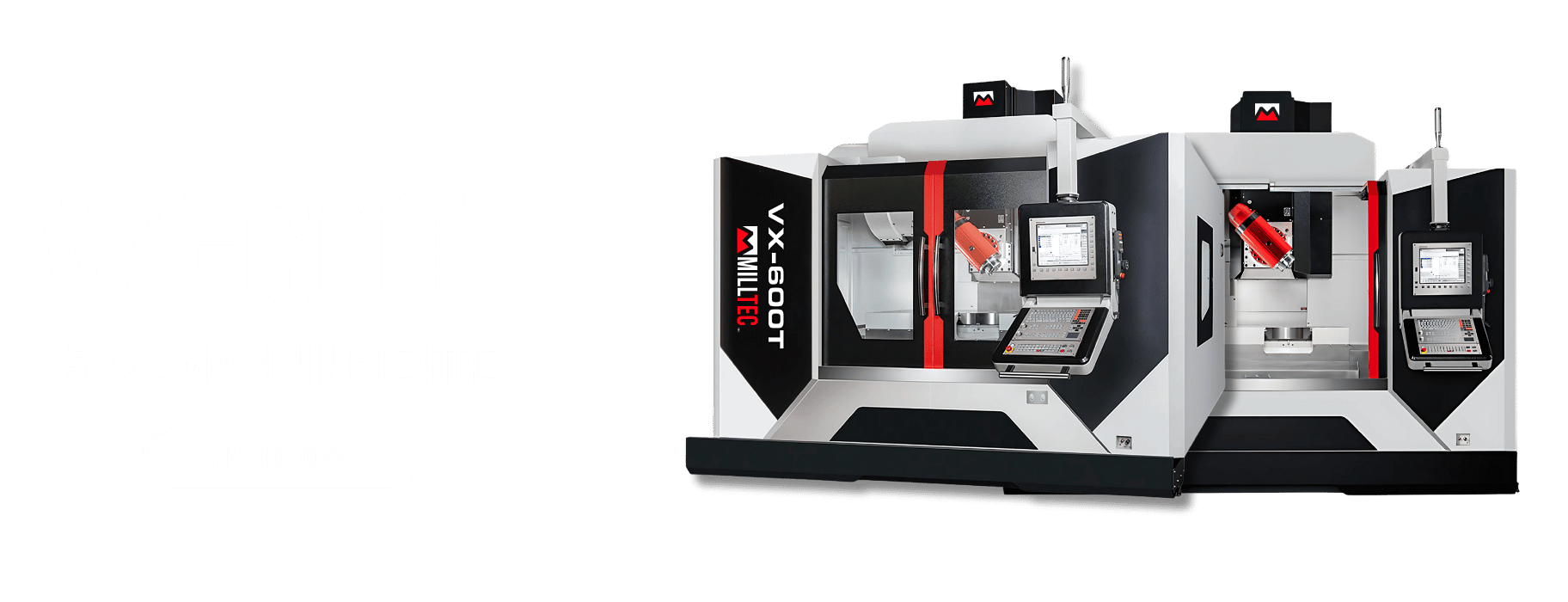

The Milltec VX-600T is a sophisticated 5-axis machining centre engineered for precision manufacturing. This robust machine combines innovative technology with exceptional versatility, making it ideal for complex machining operations.
Enquire Today
Thank you for contacting us.
We will get back to you as soon as possible.
We will get back to you as soon as possible.
Oops, there was an error sending your message.
Please try again later.
Please try again later.
Technical Data
| SPECIFICATION | |
|---|---|
| X TRAVEL | 1,300 mm |
| Y TRAVEL | 700 mm |
| Z TRAVEL | 700 mm |
| Spindle nose to table surface | 20 ~ 720 mm |
| Table Size | 700 x 1,450 mm |
| T-slot (Q'ty x Size x Dist) | 5 x 18 x 125 mm |
| Max. Table Load | 600 kgs |
| ATC Capacity | 24 / 30 / 32 / 40 tools |
| CNC CONTROL | Heidenhain TNC640 / Siemens ONE |
| Tilting Spindle Head (B axis) | |
|---|---|
| Transmission | Worm gear |
| Tilting Angle | -120˚ ~ +30˚ |
| Spindle Transmission | Build-in |
| Spindle Taper | HSK-T63 |
| Spindle Speed | 12,000 rpm |
| Spindle Power (S1 100% / S6 60% / S6 40%) | 21 ~ 25 kW |
| ROTARY TABLE (C Axis) | |
|---|---|
| Transmission | DD motor |
| Table Diameter | Ø 630 mm |
| C Axis rotating Range | 360˚ |
| Max. Speed | 1,200 rpm |
**Note: Specifications are subject to change without further notice.
