Explore the Milltec VX-800
Explore the VX-800
Product INFORMATION

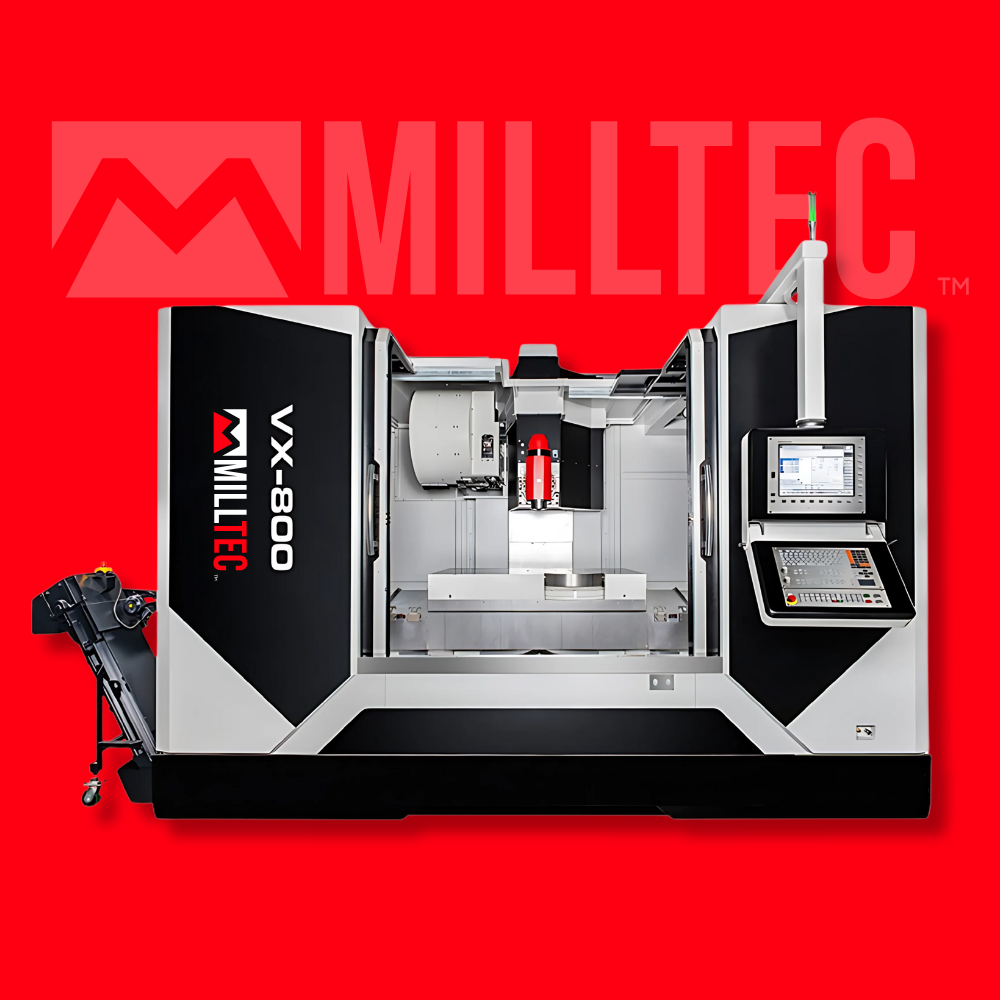

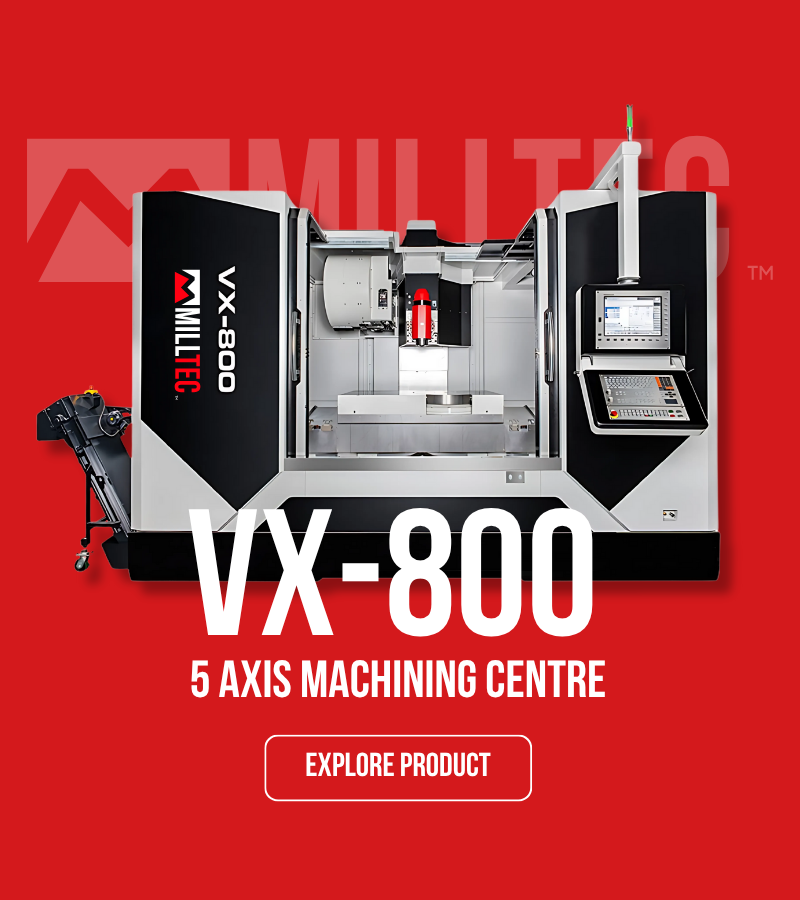

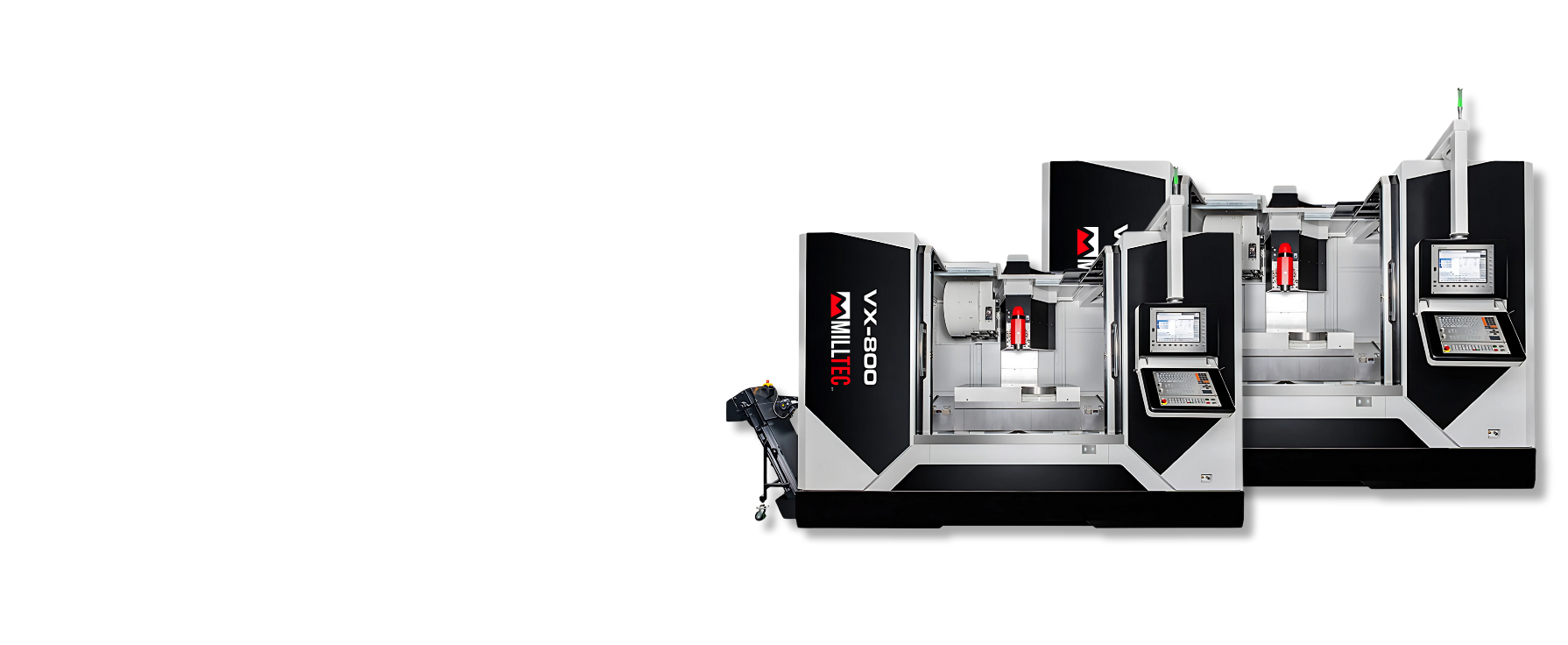

The Milltec VX-800 5-Axis Machining Centre is an advanced manufacturing powerhouse, featuring a robust 15,000rpm built-in spindle head with sophisticated swivelling capabilities. This precision-engineered machine boasts an impressive 1,600mm X-axis travel and accommodates workpieces up to 1,500kg on its generous 850 x 1,800mm table. With its versatile tool management system supporting up to 40 tools and state-of-the-art embedded rotary table, the VX-800 delivers exceptional accuracy and efficiency for complex aerospace, automotive and high-tech manufacturing applications, all achievable in a single setup.
Request A Callback
We will get back to you as soon as possible.
Please try again later.
Technical Data
| SPECIFICATION | |
|---|---|
| X TRAVEL | 1,600 mm |
| Y TRAVEL | 900 mm |
| Z TRAVEL | 850 mm |
| Spindle nose to table surface | 20 ~ 870 mm |
| Table Size | 850 x 1,800 mm |
| T-slot (Q'ty x Size x Dist) | 5 x 22 x 150 mm |
| Max. Table Load | 1,500 kgs |
| ATC Capacity | 24 / 30 / 32 / 40 tools |
| CNC CONTROL | Heidenhain TNC640 / Siemens ONE |
| Tilting Spindle Head (B axis) | |
|---|---|
| Transmission | Worm gear |
| Tilting Angle | -120˚ ~ +30˚ |
| Spindle Transmission | Build-in |
| Spindle Taper | BBT40 |
| Spindle Speed | 15,000 rpm |
| Spindle Power (S1 100% / S6 60% / S6 40%) | 21 ~ 25 kW |
| C Axis | |
|---|---|
| Transmission | DD motor |
| Table Diameter | Ø 800 mm |
| C Axis rotating Range | 360˚ |
| Max. Speed | 60 rpm |
**Note: Specifications are subject to change without further notice.
