Product INFORMATION

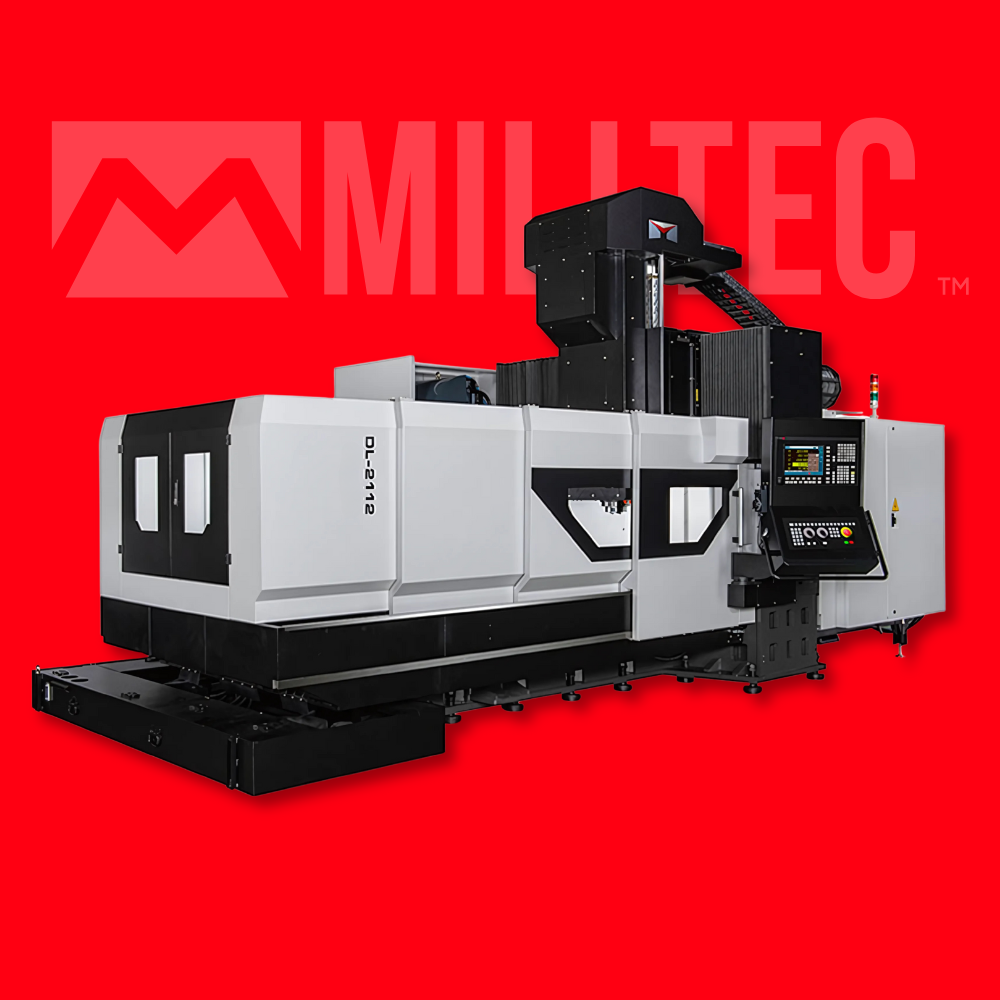

The Milltec DL-2112 Double Column Machining Centre delivers exceptional precision and versatility for large-scale manufacturing operations. Featuring a generous 2,100mm x 1,220mm x 800mm working envelope with a robust 2,000 x 1,100mm table, this machine excels at handling substantial workpieces with confidence.
Equipped with a direct-drive 10,000 RPM spindle and 24-tool automatic tool changer, the DL-2112 ensures efficient, uninterrupted production cycles. The advanced roller-type linear guideways across all three axes guarantee superior accuracy and smooth operation, whilst the seven T-slots (22mm x 150mm spacing) provide flexible workholding solutions for diverse manufacturing requirements.
Enquire Today
We will get back to you as soon as possible.
Please try again later.
Technical Data
| SPECIFICATION | |
|---|---|
| X TRAVEL | 2,100 mm |
| Y TRAVEL | 1,220 mm |
| Z TRAVEL | 800 mm |
| Spindle nose to table surface | 150 ~ 950 mm |
| Distance between columns | 1,400 mm |
| Table size | 2,000 x 1,100 mm |
| T-slot (Q'ty x Size x Dist) | 7 x 22 x 150 mm |
| Max. Table Load | 32 Tools |
| Spindle | |
|---|---|
| Transmission | Direct type |
| Spindle Taper | BT40 |
| Spindle Speed | 10,000 rpm |
| Spindle Power | 11 / 15 kW |
| OTHER ITEMS | |
|---|---|
| ATC Capacity | 24 tools |
| Slideways for 3 axis | X / Y / Z Roller type linear guideway |
*DL-1512/2112/3112/4112 shipping container: 40' OT (Evergreen)
Note: Specifications are subject to change without further notice.
