Machining Centres > High Speed Bridge Type > VF Series
Explore the Milltec VF-700
Explore the VF-300U
Product INFORMATION

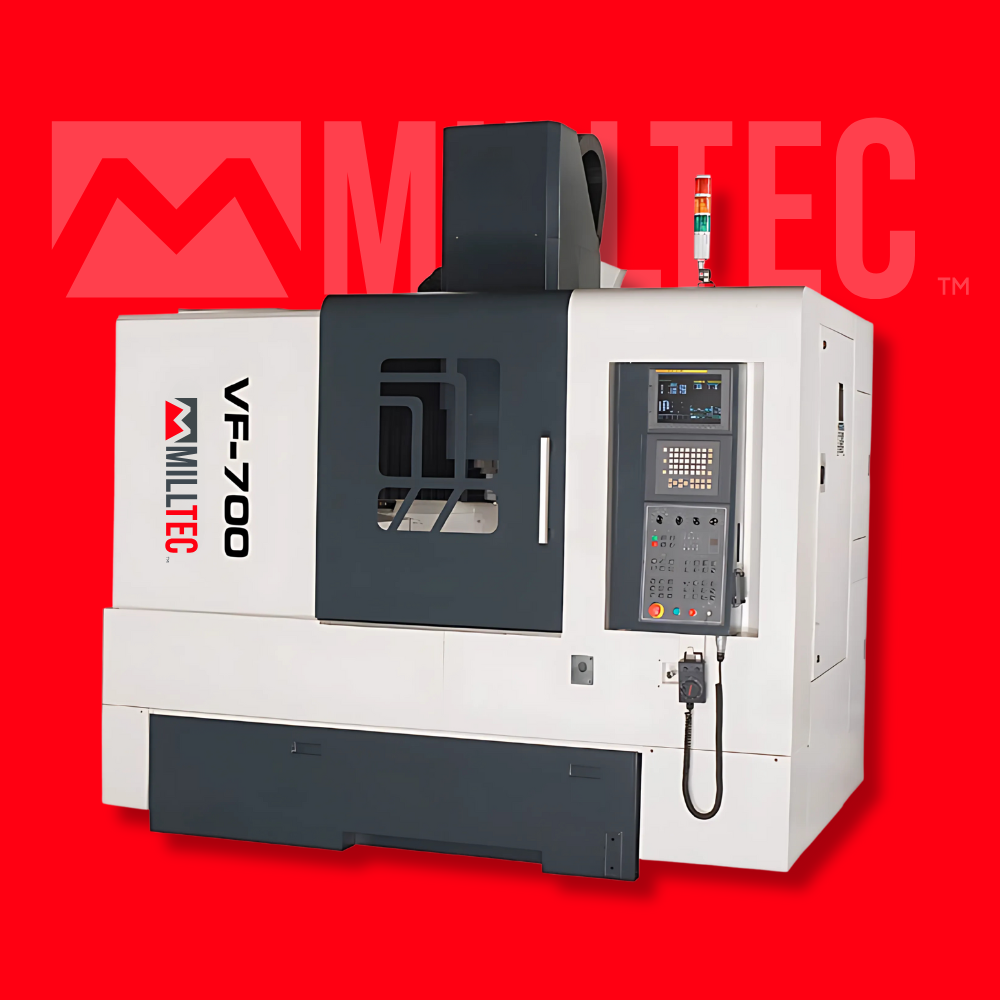

The Milltec VF-700 High-Speed Bridge-Type Machining Centre combines compact design with advanced precision engineering. Featuring a robust BT40 direct-drive spindle capable of 12,000 rpm, this machine excels in high-speed milling applications. Its roller-type linear guideways on all axes ensure smooth and accurate movement, while the 7.5/11 kW spindle motor delivers consistent power for various machining tasks.
With axis travels of 700 mm (X), 510 mm (Y), and 410 mm (Z), and a table size of 800 x 510 mm supporting up to 500 kg, the VF-700 is designed to handle a wide range of workpieces. The 16-tool automatic tool changer enhances productivity by reducing downtime during tool changes. Ideal for industries requiring high-precision and efficient machining, the VF-700 offers a reliable solution for complex component manufacturing.
Request A Callback
We will get back to you as soon as possible.
Please try again later.
Technical Data
| SPECIFICATION | |
|---|---|
| X TRAVEL | 700 mm |
| Y TRAVEL | 510 mm |
| Z TRAVEL | 410 mm |
| Spindle nose to table surface | 150~560 mm |
| Table Size | 800x510 mm |
| T-slot (Q'ty x Size x Dist) | 5x18x100 mm |
| Max. Table Load | 500 kgs |
| XYZ LINEAR GUIDE WAYS | Fanuc 0iMF 15" |
| Spindle | |
|---|---|
| Transmission | Direct type |
| Spindle Taper | BBT40 |
| Spindle Speed | 12,000 rpm |
| Spindle Power | 7.5 / 11 kW |
| ATC Capacity | 16 tools |
* Spindle motor power depends on motor selection
*Note: Specifications are subject to change without further notice.
