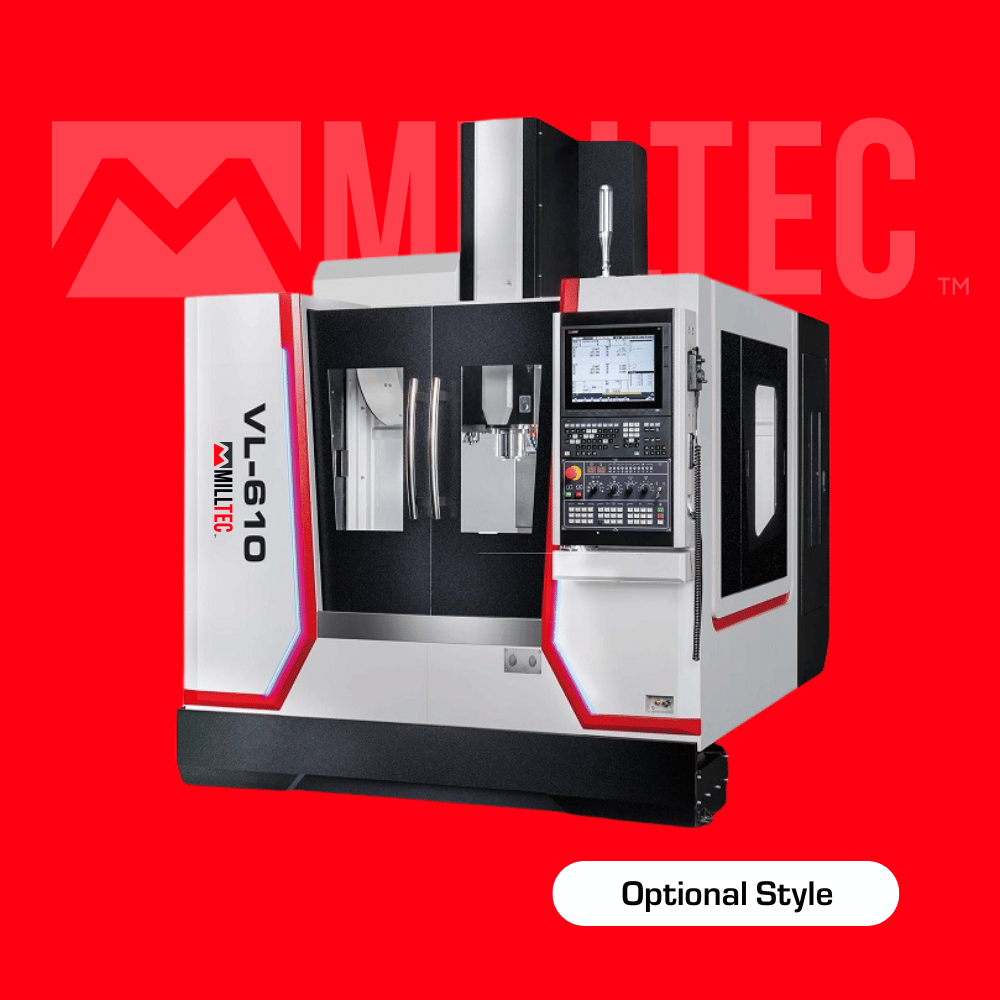

Explore the Milltec VL-610

Explore the VF-300U

Product INFORMATION

The Milltec VL‑610 is a versatile, high‑precision vertical machining centre engineered for performance and adaptability. It offers 610 × 460 × 510 mm travel, a robust 800 × 450 mm table supporting up to 400 kg, and a BT40 spindle (5.5–7.5 kW, 8,000–10,000 rpm). Available with Mitsubishi/Fanuc/Siemens/Heidenhain/Fagor CNC and 16‑tool ATC, it delivers reliable heavy‑duty machining.

Request A Callback

Technical Data

SPECIFICATION
X TRAVEL 610 mm
Y TRAVEL 460 mm
Z TRAVEL 510 mm
Spindle nose to table surface 125 ~ 635 mm
Table Size 800 x 450 mm
T-slot (Q'ty x Size x Dist) 3 x 18 x 100 mm
Max. Table Load 400 kgs
ATC Capacity 32 Tools
CNC CONTROL Fanuc 0iMF 15"
Spindle
Transmission Direct type
Spindle Taper BBT40
Spindle Speed 12,000 rpm
Spindle Power 7.5 / 11 kW
ROTARY TABLE ( A/C Axis )
A AXIS TILTING RANGE -120Ëš ~ + 10Ëš
C AXIS ROTATING RANGE 360Ëš

**Note: Specifications are subject to change without further notice.
