Product INFORMATION

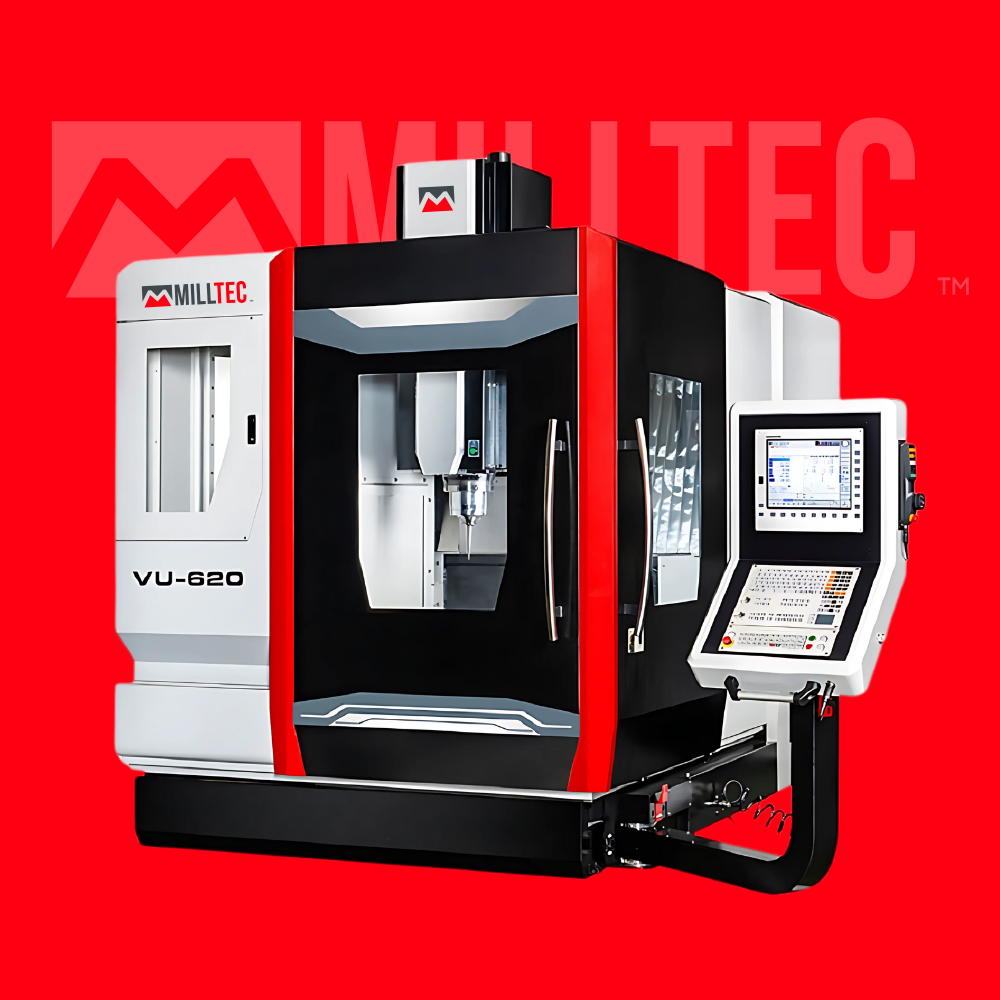

The Milltec VU-620 Universal Machining Centre exemplifies versatile manufacturing excellence with its innovative design that combines both vertical and horizontal machining capabilities. This adaptable powerhouse features a 620mm X-axis travel and a robust 12,000rpm spindle, delivering exceptional precision across multiple machining angles. Perfect for manufacturers requiring comprehensive machining solutions, the VU-620's universal configuration enables complex component production with minimal setups, making it an ideal choice for precision engineering workshops and manufacturing facilities where flexibility meets premium performance.

Request A Callback


Technical Data


SPECIFICATION
X TRAVEL 620 mm
Y TRAVEL 520 mm
Z TRAVEL 460 mm
Spindle nose to table surface 150 ~ 610 mm
Table Size Ø 650 mm
T-slot (Q'ty x Size x Dist) 5 x 18 x 100 mm
Max. Table Load Horizontal 300 kgs / Tilting 200 kgs
ATC Capacity 32 Tools
CNC CONTROL Heidenhain TNC640 / Siemens 840D
Spindle
Transmission Direct type
Spindle Taper BBT40
Spindle Speed 12,000 rpm
Spindle Power 10 / 12.5 kW *
ROTARY TABLE ( B/C Axis )
B AXIS TILTING RANGE -50˚ ~ + 110˚
C AXIS ROTATING RANGE 360˚

**Note: Specifications are subject to change without further notice.
